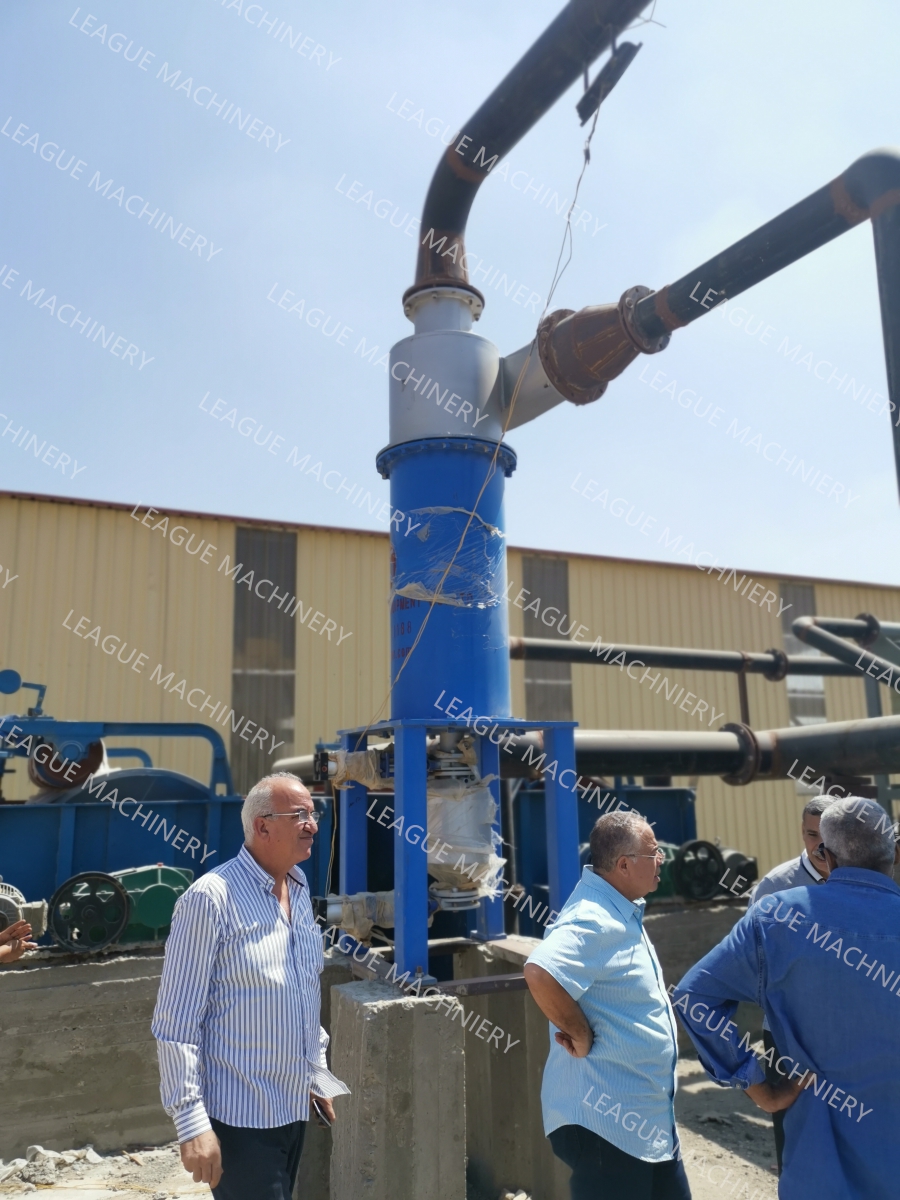

高浓除渣器

一、用途
高浓除渣器是用来在较高浓度下除去纸浆中比重较大的金属、沙子等各种重杂质，以获得高质量的浆料的一种理想设备，也是废纸制浆净化的必备设备。
二、结构
本机由进料三通、出浆管、大锥体、壳体、沉渣罐等组成。锥体上部用耐磨铸铁、尾部用玻璃制成，内部光滑，使用寿命长。浆料由上部进料三通切线进入，良浆出口在上部正中央。下锥部有平衡水进口、底部配有闸阀及沉渣罐，下锥部和沉渣罐分别设有窥视镜。
该设备合理设计了上部进料三通和出浆管，分离锥体长，可在浆料浓度较高的情况下获得良好的分离除渣效果。
三、工作原理
高浓除渣器是利用纤维与杂质比重不同来分离杂质的。浆料以一定压力由进料三通切线进入除渣器后高速旋转，由于离心力的不同，重杂质被甩向器壁，在重力作用下，渐渐向锥底运行，进入沉渣罐。纤维由于离心力较小，逐渐向中心低压区运行，到达底部后涡旋上升，最后由良浆口排出。高浓除渣器的锥体具有一定锥度，且锥体较长，浆料在锥体内旋转半径逐渐减小，避免浆流在旋转过程中速度降低，保证离心力得到加强，因而提高了纸料的净化效率。底部平衡水压力略大于浆料压力，使纤维不能进入沉渣罐，只有砂粒、金属颗粒、胶块、塑料等重杂质沉入罐内，减少了纤维流失。

High-Density Cleaner is the ideal paper making equipment used to remove the metal, sand and other heavy impurities with a large specific gravity in the paper pulp at a higher concentration to obtain the pulp stock of high quality. Meanwhile, it is also the necessary equipment for pulping and purifying of waste paper.

Features of High-Density Cleaner:

1. With super observation window, it is intuitive and easy to operate and control.

2. Long separation cone and high slag removal efficiency.

3. The slag removal concentration is between 2% and 5%.

4. Special and quick-opening control valve, easy operation and no slag inclusion.

5. The cone is made of ceramic materials and has a long service life.

Technical parameters of High-Density Cleaner:

Model                                ZSA1A           ZSA2A        ZSA3A        ZSA4B         ZSA5B       ZSCG6B

Carrying capacity (L/min)               800—1500      1600—2700    3000—4600    4500—5800   5800—7500    8000—12000

Diameter of inlet and outlet (mm)        Ø200

Feeding pulp concentration (%)          2–5

Pressure of pulp stock feeding (Mpa)    0.2—0.35

Discharging pulp pressure (Mpa)       0.01–0.05

Equilibrium water pressure (Mpa)       0.2—0.35

Equilibrium water quantity of flow (L/min) 20—60            35—60        35—80         45-100        55-120       65-140

Sediment tank volume (L)                80                100           100            100

Deslagging way                Manual or pneumatic

Weight (Kg)                           520               520           950            1100         1200         1200
