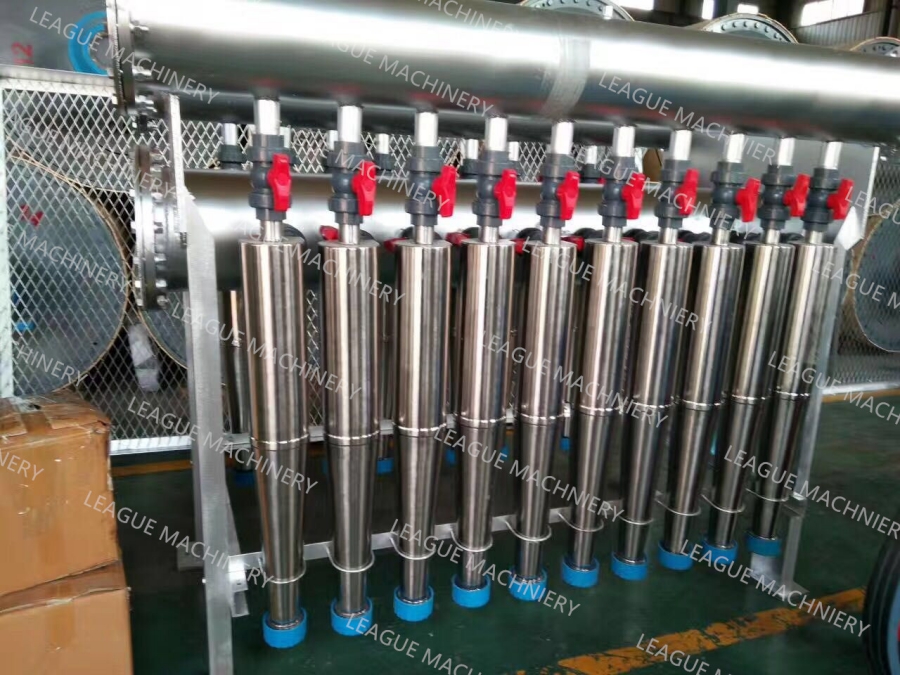

Low Density Desander / Centri Cleaner
Brief Introduction
The desander is a kind of forward cleaner which takes advantage of centrifugal principle to remove the impurities from pulp. It can remove the sand, iron filings, dust and large plastic pieces, ceresin was, foam, melt adhesive, mixed waste, fasciculus and other impurities.
Main Technical Parameter
Type | TSC-400 | TSC-600 | TSC-700 |
Rated throughput amount for single piece | 400L/min | 600L/min | 700L/min |
Pulp feeding concentration | 0.3-1.0% | ||
Pulp feeding pressure | 0.25-0.35Mpa | ||
Rated differential pressure of pulping in/out | 0.15Mpa | 0.16Mpa | 0.17Mpa |
Min. accepts pulp pressure | 0.03Mpa | ||
Slag discharge rate for single stage volume | 5-10% | 4-8% | 4-8% |
Slag discharge rate for single stage round | 12-20% | 15-24% | 15-24% |
Slag discharge port diameter | 4-16 | ||
Slag discharge mode | Open/pressurized/closed | ||
