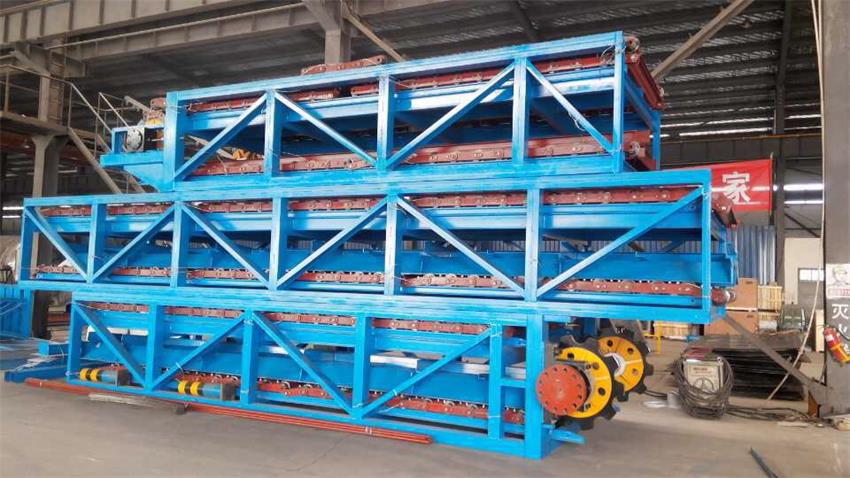

Chain Plate Conveyor
Brief Introduction
BFW series Chain Conveyor is mainly used to transport all kinds of bulk or bundle-like materials in the paper-making industry in a horizontal direction or inclination of less than 30°. It is often used to feed the waste paper and pulp board to pulper.
This Chain Conveyor has a reasonable structure, and the chain is used to drive the slot plate movement, thus transporting the materials. It has the advantages of great transmission capacity, low power consumption, small wear and reliable working. It is used in many paper mills in the whole country and has a good effect, and it is the most ideal equipment for delivering the waste paper and pulp board.
Features
1. The slot plate is the press forming plate with high strength and impact resistance;
2. The direct connection of the main shaft reducer and couplings is used for driving, making the force of the whole equipment more reasonable;
3. The side plate of the striker plate is the widened striker plate, increasing the throughput capacity and delivery capacity of the materials;
4. The chain is composed of the heavy chain pieces, heavy roller, oiling axis pin, heavy-duty, high wear-proof bushing and others;
5. The rail-mounted running is used for the rollaway nest, thus making waling steady and reliable, coefficient of friction lower and power consumption lower.
Technical Parameters
Model | BWF | BWF | BWF | BWF | BWF | BWF | BWF | BWF |
Effective width (mm) | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 |
Feeding capacity (M³/H) | 65-210 | 80-255 | 95-300 | 110-345 | 140-390 | 160-430 | 200-500 | 240-600 |
Delivering the materials | Pulp board | waste paper | ||||||
Material min. size (mm) | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
Motor power (KW) | 3-5.5 | 4-7.5 | 5.5-11 | 11-15 | 15-22 | 22-30 | 30-45 | 37-55 |
Remarks | Above parameters will be adjusted accordingly based on the different raw materials, final equipment technical parameter shall as per technical details |
